Our Services
The Best System Services
Wired/Wireless Remote Control
Experience seamless operation with our remote control, featuring ergonomic one-hand functionality. We also provide a proportional control and emergency safety stop.
Power packs
Specially designed 1.6kw power for the HY10 series cranes, the power packs are available in 12V versions. They are protected inside a robust case and are easy to maintain.
Slewing Mechanism
Maximum performance in minimal space. This allows precise slewing of the crane.
Safety Valves
Every cylinder of the crane is protected by a safety valve to provide enhanced load control and prevent unintentional movement.
Stabilizer System
Stabilizer is equipped with a manual extension on one/two side and can be fitted with pivoting support cylinders as an option. Extended support cylinders are also available as an option.

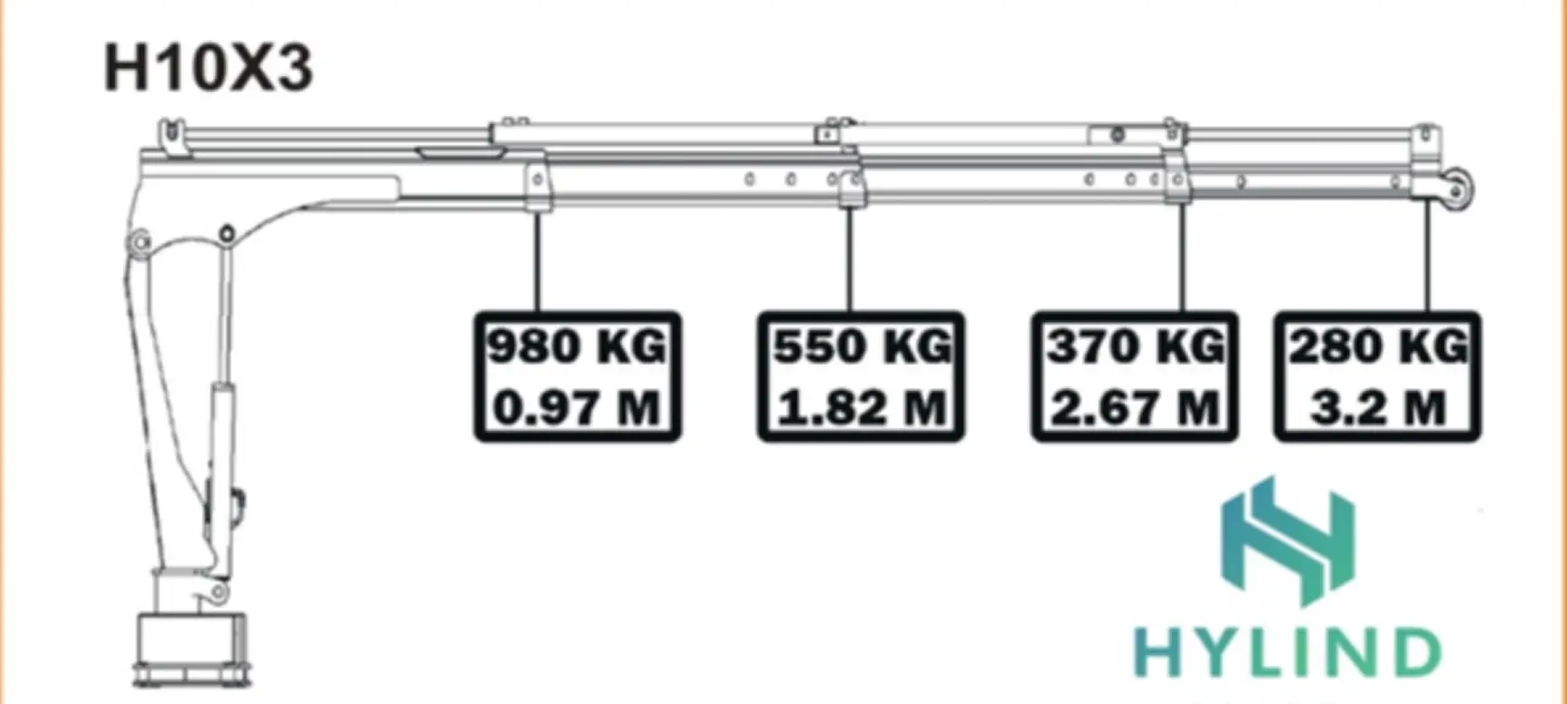

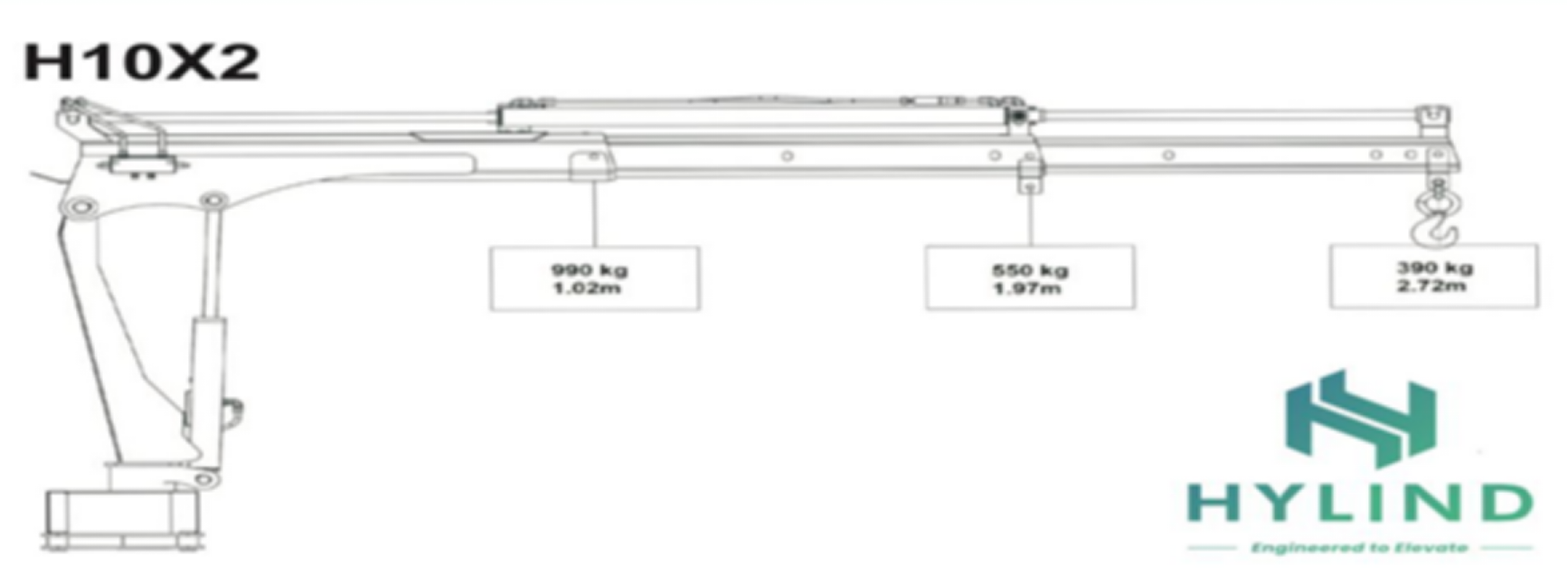

HY10 Series | X1 | X2 | X3 |
Maximum Lifting Capacity | 1000kg | 1000kg | 1000kg |
Maximum Lifting Height | 3m | 3m | 3m |
Maximum Hydraulic Outreach | 1.82m | 2.67m | 3.20m |
Maximum Manual Outreach | 2.57m | 3.42m | 3.95m |
Slewing Angle 330° 330° 330° | 330° | 330° | 330° |
Oil Tank Capacity 15L 15L 15L | 15L | 15L | 15L |
Standard Crane Weight | 190kg | 210kg | 230kg |
